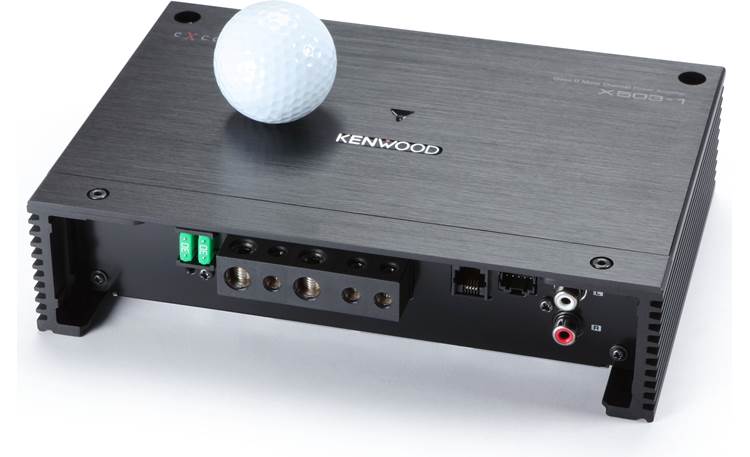

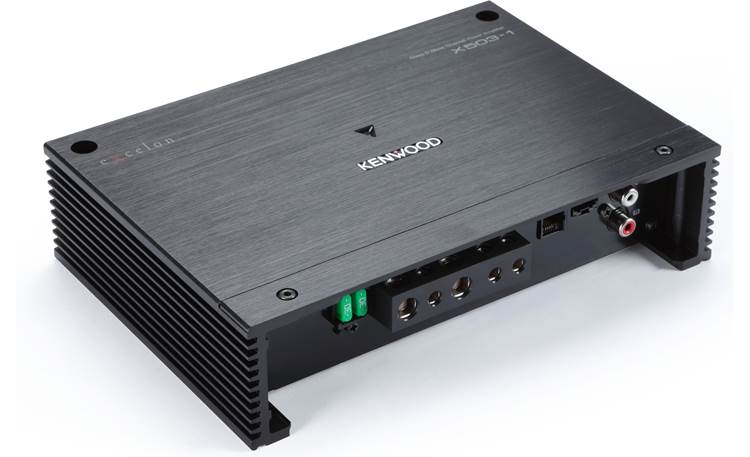

Kenwood’s Excelon X503-1 mono sub amp provides up to 500 watts RMS to your subwoofer and will fit almost anywhere in your vehicle. Kenwood uses audiophile-grade tech, including shielded output circuitry, high-quality capacitors, and Class D technology to ensure the amp will sound great and run cool.
A precise low-pass filter lets you optimize the sound for your sub, while the built-in bass boost lets you dial in just the right amount of thump. A subsonic filter removes ultra-low bass so that your amp and sub can operate more efficiently. A wired remote lets you control your sub’s level from the front seat.
The amp accepts input signals via RCA cables from an aftermarket receiver or by way of a factory radio’s speaker wiring so it’ll work with almost any non-premium mobile audio system. If you do use the speaker-level inputs, the amp can sense the signal and turn itself on, so you won’t need to install a separate remote turn-on lead running from the receiver or fuse box.
- mono subwoofer amplifier
- 300 watts RMS x 1 at 4 ohms
- 500 watts RMS x 1 at 2 ohms
- CTA-2006 compliant
- Class-D amplifier design
- frequency response: 20-200 Hz

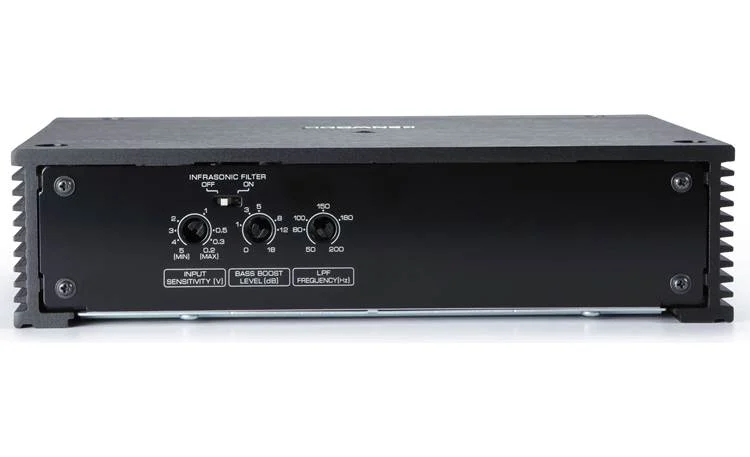

- variable low-pass filter: 50-200 Hz, 24 dB/octave
- variable bass boost: 0-18 dB at 40 Hz
- selectable subsonic filter: 25 Hz, 24 dB/octave

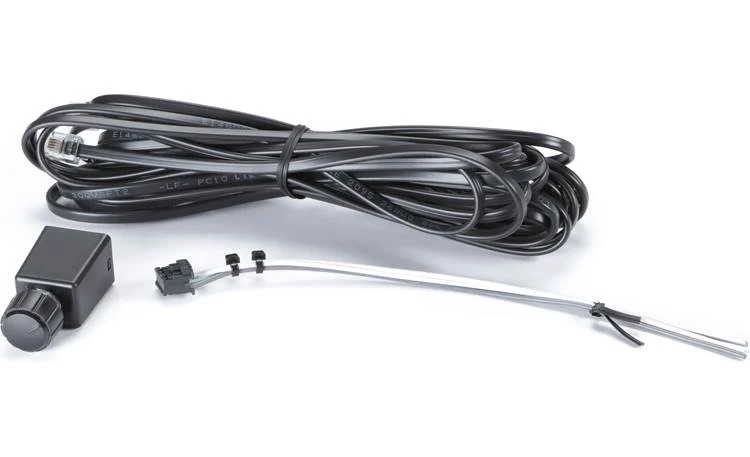

- wired remote level control included

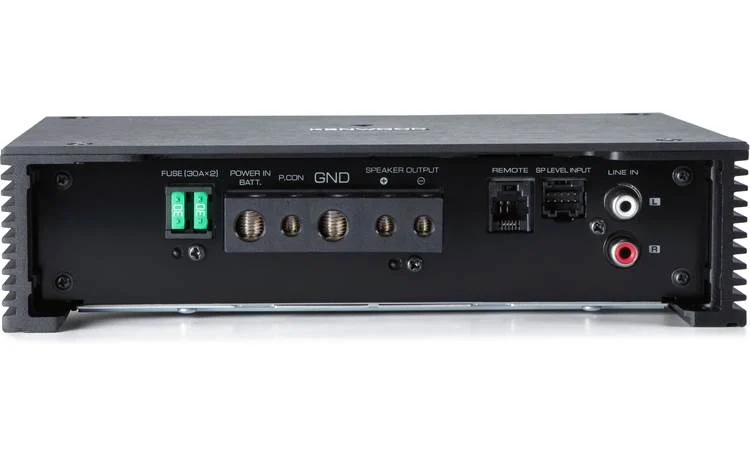

- preamp and speaker-level inputs
- speaker wire adapters included
- speaker-level inputs can handle up to 12V (36W)
- signal-sensing turn-on with speaker-level input
- wiring and hardware not included with amplifier
- 8-gauge power and ground leads recommended
- fuse rating: 30A x 2
- dimensions: 8.4″W x 2.09″H x 5.95″D
