XR600-6DSP
Kenwood eXcelon XR600-6DSP OEM Integration Amplifier with 192kHz/32bit DSP
Description
-
Factory Radio Integration
- Many new cars equipped with premium amplified systems are nearly impossible to replace and very difficult to upgrade the audio performance. The XR600-6DSP when combined with an iDatalink Maestro AR can use a true stereo signal from the existing OEM stereo and translate all the CAN-Bus communication of the original radio to the XR600-6DSP. Integrates with many Chrysler, Dodge, Fiat, Ford, Jeep, Lexus, Maserati, Ram, Subaru and Toyota premium systems, with more vehicles to follow.
-
Setup by Remote App Through Bluetooth Connection
- Use the KENWOOD DSP Control App (compatible with iPhone and Android) to setup the XR600-6DSP. The listening position, advanced equalization and filtering can be set during installation and the setting stored in memory. A simplified mode is available for day to day use.
-
Sound Quality and System Building
- The 32-Bit 192kHz DSP gives the flexibility of independent tuning and equalization that is required with the variance of speakers and location challenges being used in a typical system. The channel flexibility allows any function or tuning on all 10 channels making it one of the most versatile solution based amplifiers on the market today.
-

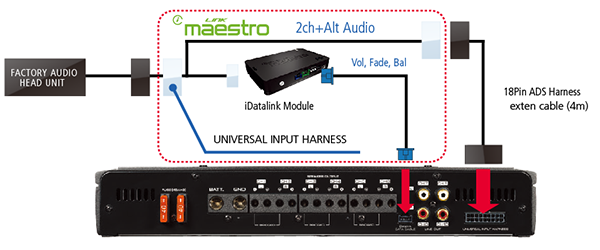

Easy Connection to Idatalink AR Module
- A vehicle specific harness will allow connection between the factory radio plug, the iDatalink AR Module and the XR600-6DSP making the installation efficient and simple.
-
Excelon Performance & Quality
-
- eXcelon products incorporate the latest technologies and deliver the highest sonic performance. From advanced audio tuning capabilities, crossover and equalizer systems, high voltage preouts and two-year warranty, eXcelon represents the very best product available.
- Reference-Fit amplifiers are KENWOOD’s best sounding amps and have one of the smallest footprints in their class, making them the perfect solution for vehicle installation where space is at a premium. This compact size was made possible by the development of a high-density mount circuit board in conjunction with an enhanced air cooling and heat control systems. KENWOOD’s created a compact amplifier that enables installation in tight locations previously restricted to lower performance amps. This is ideal for users who do not wish to sacrifice space or prefer a stealth installation.
-
Air Cooling
- By positioning the fan in close proximity to heat producing circuitry, heat is dissipated efficiently. This allows the amplifier to operate at comfortable temperature levels even under the most stressful conditions.
-
Gold-Plated Line Output Terminals
- This type of connector is non-corrosive and will maintain conductivity for long periods of time.
-
Battery/Ground Terminals
- These HEX-type terminals can accommodate up to AWG 4 – AWG 6 battery and ground wire thickness for better voltage maintenance from the vehicle’s battery. The HEX type design allows for maximum tightening and contact onto the wire.
-
Speaker Output Terminals
- These HEX-type terminals can accommodate up to AWG 8 – AWG 12 speaker wire thickness for better signal delivery to speakers. The HEX type design allows for maximum tightening and contact onto the wire.
-
GENERAL FEATURES
-
- Max Power : 1200W
- RMS Power :75W x 6 (4Ω) 100W x 6 (2Ω)
- (W)12-5/8″ x (H)2″ x (D)6-5/8″
- Built-in DSP
- Setting by Remote App
- 6ch Output
- 13Band Graphic Equalizer
- 3Band Parametric Equalizer
- Digital Time Alignment
- Digital X’over
