ML Power 5

ML Power 5

$879.99

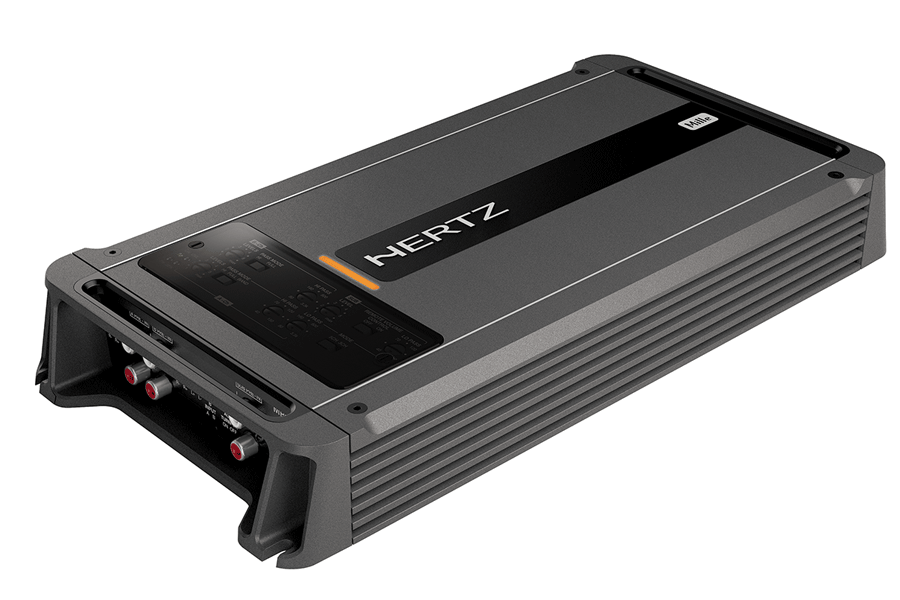

Mille power amplifiers are born to fully enhance the outstanding performance of the Mille speakers. The new ADC (ADVANCED D-CLASS TECHNOLOGY) ensures pure listening pleasure while keeping a compact size with unmatched power efficiency. The heat sink, engineered with double technology, extrusion and aluminium die-casting, enables the Mille Power amplifiers to work constantly at full power without ever overheating, further maximizing thermal efficiency.  The ultra-versatile Hertzaudio car amplifier ML Power 5 (100 W x 4 + 550 W 2 Ω) provides the ability to drive a Mille system including the subwoofer. The HRC BM (Hertz Remote Control Bass Management), low frequencies level remote control, is optional.

Availability: 7 in stock

SKU: MLPOWER5 Categories: , Brand:

Mille power amplifiers are born to fully enhance the outstanding performance of the Mille speakers. The new ADC (ADVANCED D-CLASS TECHNOLOGY) ensures pure listening pleasure while keeping a compact size with unmatched power efficiency. The heat sink, engineered with double technology, extrusion and aluminium die-casting, enables the Mille Power amplifiers to work constantly at full power without ever overheating, further maximizing thermal efficiency.  The ultra-versatile Hertzaudio car amplifier ML Power 5 (100 W x 4 + 550 W 2 Ω) provides the ability to drive a Mille system including the subwoofer. The HRC BM (Hertz Remote Control Bass Management), low frequencies level remote control, is optional.

Channels

11÷15 VDC
Idling current:

3 A
Idling current when off:

0.04 mA
Consumption @ 2Ω, 14.4 VDC (Max Musical Power)

50 A
Distorsion - THD (100 Hz @ 4Ω):

0.08 %
Bandwidth A & B Ch (-3 dB):

5 ÷ 50k Hz
Bandwidth C Ch (-3 dB):

5 ÷ 500 Hz
S/N Ratio A & B Ch (A weighted @ 1 V)

100 dB
S/N Ratio C Ch (A weighted @ 1 V):

106 dB
Damping factor A & B Ch (100 Hz @ 4Ω):

50
Damping factor C Ch (100 Hz @ 4Ω):

90
Pre-In sensitivity:

0.2 ÷ 5 V RMS
Pre-In impedance:

15 kΩ

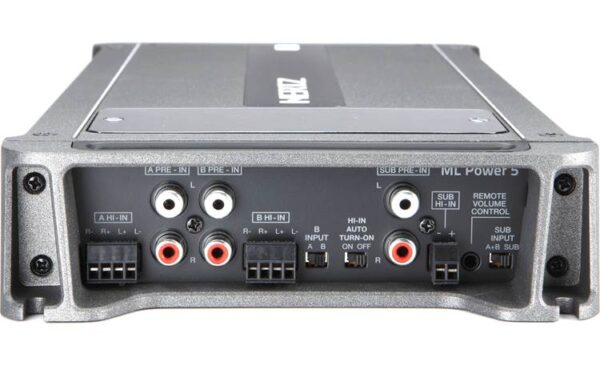

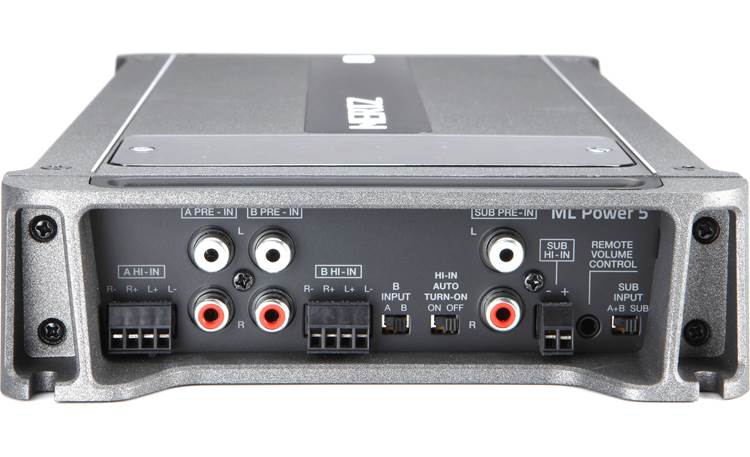

Speaker-In sensitivity:

0.8 ÷ 20 V RMS
Speaker-In impedance:

470 Ω
Load impedance: 5 Ch 3 Ch

4 x 2Ω + 1 x 2Ω
2 x 4Ω + 1 x 2Ω
Remote In:

4 ÷ 15 VDC – 1 mA
ART™:

Automatic Remote Turn-On/Off with Speaker-In

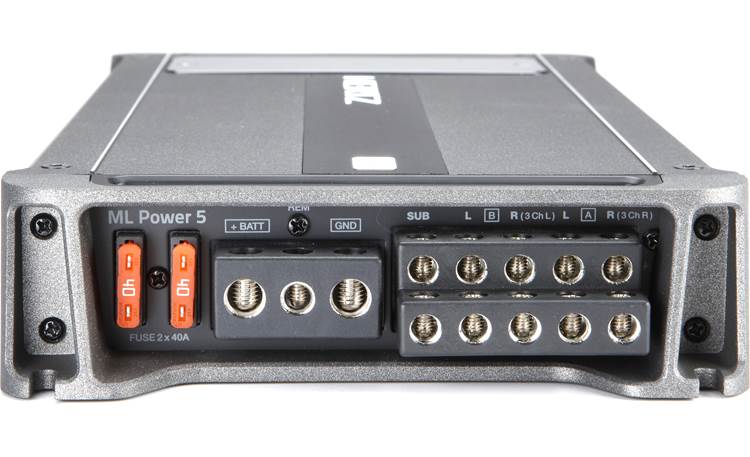

Fuse:

2 x 40 A
Max size (mm/inches):

170 x 349 x 46.70 / 6.69 x 13.74 x 1.84

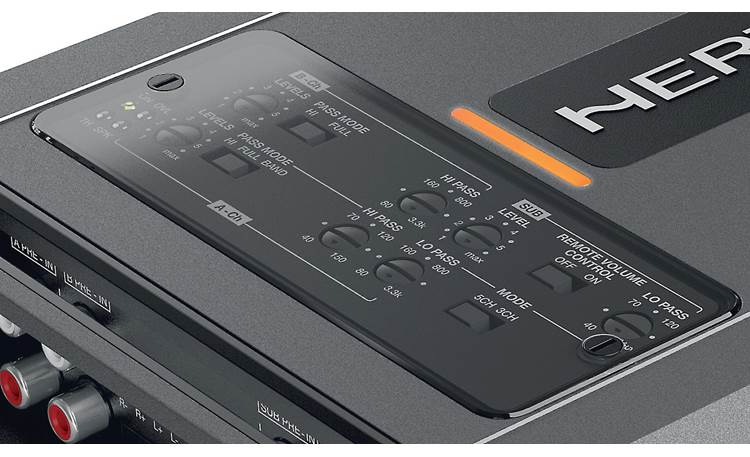

Adjustable Crossovers

Yes
