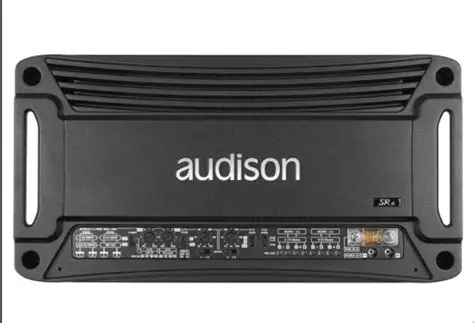

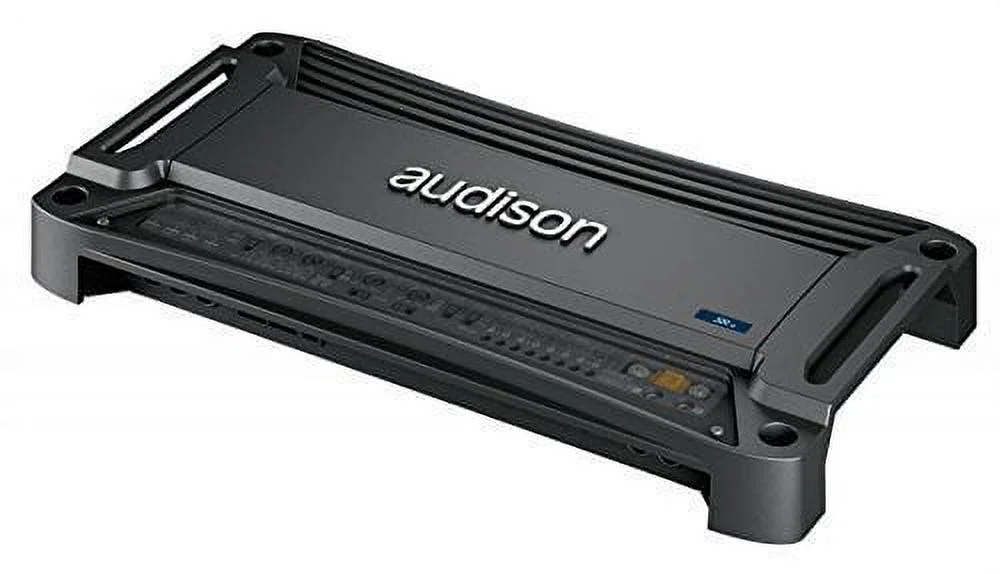

SR 4 is a DYNAB four-channel amplifier, perfect for driving Front/Rear, Front/Sub or as part of a multi-channel system, with independent, fully configurable, by-passable crossover sections.
- Fully by-passable crossover FILTERS
- Removable panel to hide and protect controls
- Monoblock aluminium heatsink construction
- Fanless convection cooling system
- Strip fuse located on the control panel for easy replacement
- 6 Connections: Power supply terminals accepts 7 mm diameter (4 AWG) cable, Speaker terminals accepts 4.5 mm diameter (8 AWG) cables, Hi Level speaker and remote turn-on terminals equipped with removable connectors with screw fastening
- 24dB low-pass filter when used in 3-channel configuration
- Dual range high-pass filter (50Hz÷500Hz / 500Hz÷5kHz) for multi-channel configurations
- Nominal power (RMS) @12 VDC; 1% THD :
- 4 Ch @ 4 Ω 45 W x 4
- Output power (RMS) @14.4 VDC; 1% THD:
- 4 Ch @ 4 Ω 65 W x 4
- 4 Ch @ 2 Ω 90 W x 4
- 3 Ch @ 4 Ω 60 W x 2 + 190 W x 1
- 2 Ch @ 4 Ω 175 W x 2
- Dimensions: WxHxD (inches) 8”7/16 x 2”1/8 x 16”1/16
