Your amplifiers need hefty power and ground wiring in order to deliver the big power you want. Kicker’s PKD1 multi-amp wiring kit includes the basic power, ground, and turn-on wiring for an amplified system with a total fuse rating of up to 200 amperes. This kit is suitable for a system with a total output of about 1300 watts RMS for Class AB amps or about 2000 watts RMS for Class D amps.
The kit includes a 17-foot 1/0-gauge power wire that runs from your battery to a fused distribution block, plus a 4-foot length of 4-gauge wire that can be made to accommodate two amplifiers. Kicker makes all their wires from oxygen-free copper so you can count on maximum power and signal transfer with minimum resistance or interference.
This wiring kit does not include speaker wire or patch cables. You will need to purchase those separately, in order to complete your amplifier installation.

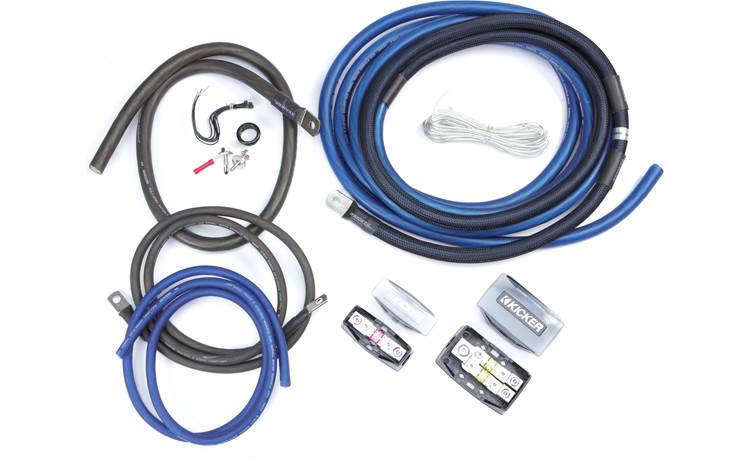

- multi-amplifier power wiring kit
- cables meet or exceed the American Wire Gauge specifications and requirements

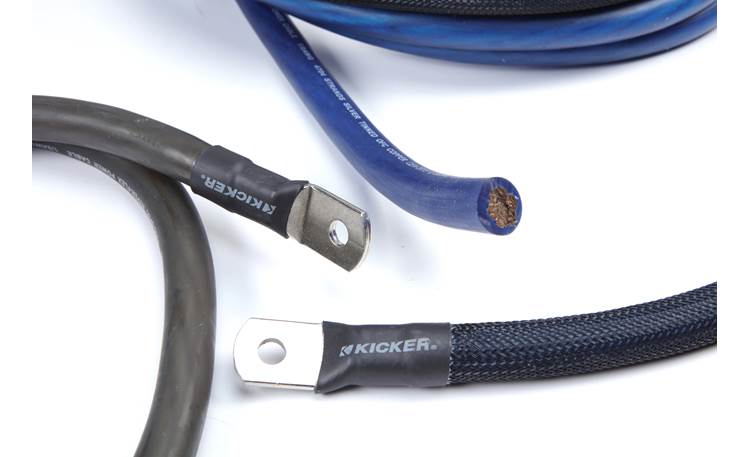

- 17 feet of blue 1/0-gauge power cable with attached ring terminal and protective wire loom
- 3 feet of gray 1/0-gauge ground cable with attached ring terminal
- 4 feet of blue 4-gauge power cable
- 4 feet of gray 4-gauge ground cable with attached ring terminals
- 17 feet of clear 16-gauge turn-on lead wire

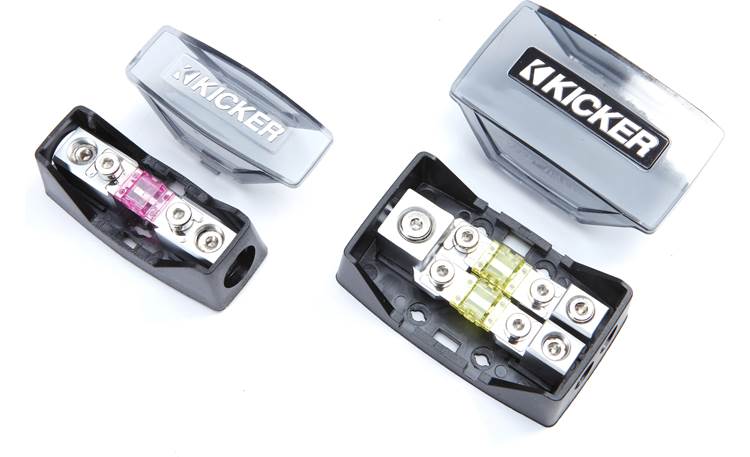

- FHD fused distribution block with two 100-amp fuses
- AFS fuse holder and 200-amp fuse
- assortment of installation hardware and cable ties
- extends a Kicker amplifier’s warranty by one year, if purchased along with the amp
- warranty: 1 year
